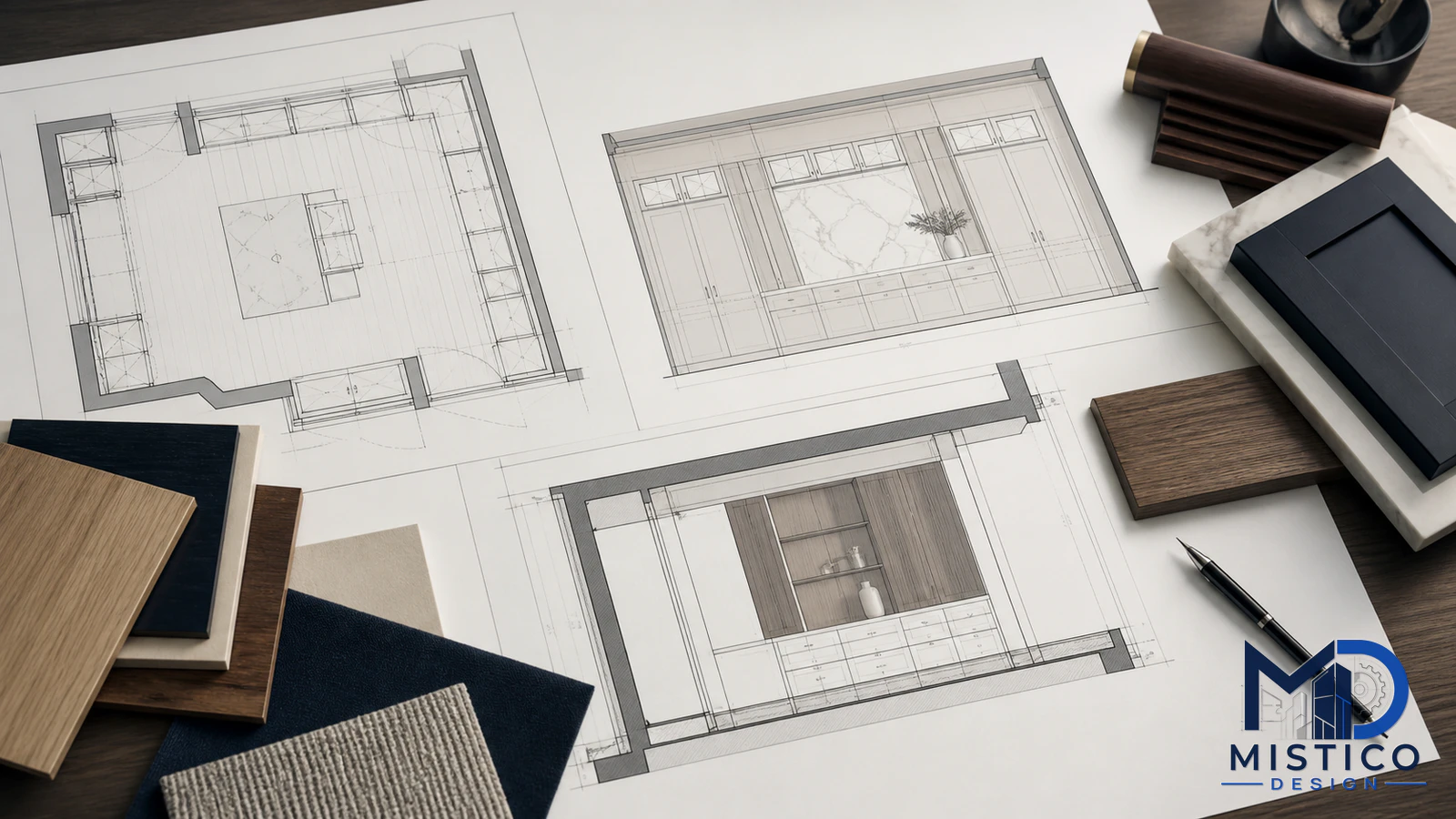

Plans, Elevations and Sections in Millwork Drawings

SECTION 01

Why millwork drawing sets use several views

A coordinated drawing set uses the same item tags, dimensions, levels, and references across every view. A plan may locate a reception desk, an elevation may show its panelling and openings, and a section may reveal counter thickness, support, returns, access space, or service zones.

International project teams often use different regional terminology and dimension systems, but the practical requirement remains consistent: establish the current reference files, the stated drawing purpose, the person responsible for decisions, and a controlled route for comments and revisions. Documentation should follow the client or project dimensioning standard, whether metric or imperial.

For millwork plans elevations and sections, readers should be able to trace a statement back to the relevant item, view, schedule, source, or decision. If that connection is missing, a short clarification or an open action is usually more useful than a broad general note.

Each view should answer its own question

Enlarged details should be used when the main view cannot clearly communicate a junction. A shadow gap, ceiling termination, plinth, panel return, worktop edge, or fixing zone usually needs a deliberate section or detail at a readable scale.

The aim is to give each recipient the information needed for their stated review or task while keeping the document readable. A drawing does not become more dependable simply because it contains more notes; it becomes more dependable when its important relationships are visible.

SECTION 02

Making plans, elevations, and sections agree

Start with the location and visible composition, then cut sections where depth, construction, or an interface matters. Compare dimensions from each view and make sure a reference to a detail directs the reader to the relevant item rather than a generic typical condition.

The level of information should match the next decision. Early coordination can establish layout, visible intent, and critical interfaces; later production or installation information can add components, materials, hardware, and assembly detail after the relevant inputs are confirmed.

A practical review rhythm is to check scope and references first, then visual and functional intent, then interfaces and technical dependencies, and finally issue status. This helps teams keep design discussion separate from an instruction that is ready for the next agreed stage.

• Item location and orientation in plan
• Visible arrangement and vertical dimensions in elevation
• Depth, construction, and interfaces in section
• Detail callouts for critical junctions
• Shared item tags, levels, and revision references

Keep the information connected

Clear technical documentation does not replace the responsibilities of architects, contractors, consultants, fabricators, or site teams. It makes those interfaces visible, records dependencies, and helps remote reviews, markups, redlines, drawing submissions, and revisions remain traceable.

Use common naming across sheets, schedules, and issue notes. When an item is renamed or a reference changes, review the related views at the same time so another team member does not have to reconcile two inconsistent records.

SECTION 03

When an enlarged detail is necessary

An elevation alone can make an assembly appear resolved while concealing thickness, tolerance, structural support, service access, or adjacent finishes. A plan alone can miss the design alignment and vertical relationships that users see. Use each view for its intended purpose.

The useful test is whether a capable reader can locate the item, understand the governing reference, see the information that affects their work, and raise a specific question where something remains unresolved. That is more helpful than adding terms or detail that does not serve a real project decision.

Good handoffs identify both what is known and what remains pending. That transparency allows a client, designer, manufacturer, contractor, or other responsible project party to make a timely decision without assuming that a preliminary or coordination drawing is a final approval.

A controlled issue path

Record source revisions, identify the issue purpose, consolidate comments, show what changed, and archive superseded files. This simple rhythm supports collaboration across clients, manufacturers, contractors, and design teams.

Where a drawing depends on information from another discipline or source, state that dependency plainly. This supports coordinated review without representing that MISTICO DESIGN has verified design, code, site, engineering, or specialist information outside the agreed scope.

SECTION 04

A readable view hierarchy

Use simple sheet hierarchy: locate the item in plan, show the visible intent in elevation, cut where depth must be understood, and enlarge the critical junction. Stable cross-references make this sequence easy to follow.

MISTICO DESIGN can develop agreed drawing, CAD, documentation, and coordination deliverables for international project teams. The exact scope, standards, source information, and approval workflow are confirmed for each project so the output remains aligned with the actual requirement.

Before release, check the drawing set as a reader would: locate an item, follow its references, compare the relevant views, and make sure the status and next action are visible. This final pass is a straightforward way to reduce avoidable review loops.
