What Should Millwork Shop Drawings Include?

SECTION 01

The core content of a shop drawing set

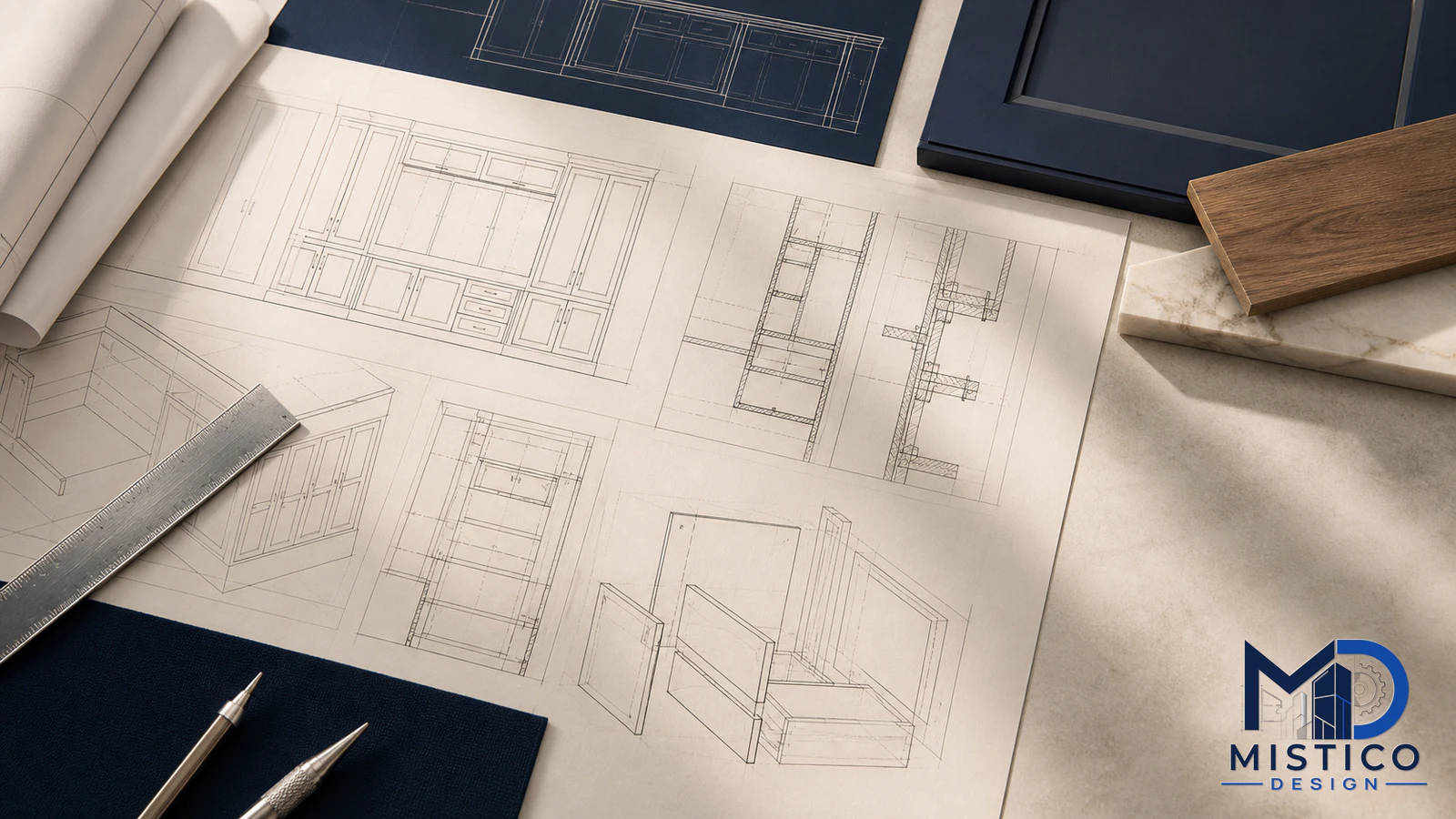

Plans, elevations, and sections form the core visual language. Plans establish location and relationship to surrounding walls or furnishings; elevations explain composition and alignment; sections reveal depth, build-up, clearances, and support conditions. Enlarged details are added where a small drawing scale cannot explain the decision clearly.

International project teams often use different regional terminology and dimension systems, but the practical requirement remains consistent: establish the current reference files, the stated drawing purpose, the person responsible for decisions, and a controlled route for comments and revisions. Documentation should follow the client or project dimensioning standard, whether metric or imperial.

For millwork shop drawing requirements, readers should be able to trace a statement back to the relevant item, view, schedule, source, or decision. If that connection is missing, a short clarification or an open action is usually more useful than a broad general note.

Each view should answer a different question

Dimensions need to describe the thing being made and the condition it must meet. Overall size alone is rarely enough where fillers, scribes, panels, doors, drawers, worktops, or recessed reveals are involved. Material and finish references should be tied to a schedule or approved sample system.

The aim is to give each recipient the information needed for their stated review or task while keeping the document readable. A drawing does not become more dependable simply because it contains more notes; it becomes more dependable when its important relationships are visible.

SECTION 02

How views, dimensions, and schedules work together

Confirm the drawing basis before detailing. Record which plan revision, room layout, finish schedule, hardware selection, site dimension, or markup controls. Then issue the package for its stated purpose, consolidate comments, and identify values that must be verified before fabrication.

The level of information should match the next decision. Early coordination can establish layout, visible intent, and critical interfaces; later production or installation information can add components, materials, hardware, and assembly detail after the relevant inputs are confirmed.

A practical review rhythm is to check scope and references first, then visual and functional intent, then interfaces and technical dependencies, and finally issue status. This helps teams keep design discussion separate from an instruction that is ready for the next agreed stage.

• Location plan and item references
• Visible elevations and key sections
• Overall and component dimensions
• Materials, finishes, hardware, and edge conditions
• Installation, site verification, and revision information

Keep the information connected

Clear technical documentation does not replace the responsibilities of architects, contractors, consultants, fabricators, or site teams. It makes those interfaces visible, records dependencies, and helps remote reviews, markups, redlines, drawing submissions, and revisions remain traceable.

Use common naming across sheets, schedules, and issue notes. When an item is renamed or a reference changes, review the related views at the same time so another team member does not have to reconcile two inconsistent records.

SECTION 03

Information gaps that create late revisions

Do not make a drawing look complete by hiding unresolved decisions inside a broad note. A pending dimension, missing product data, or uncertain interface should be called out as an action so the project team can decide it.

The useful test is whether a capable reader can locate the item, understand the governing reference, see the information that affects their work, and raise a specific question where something remains unresolved. That is more helpful than adding terms or detail that does not serve a real project decision.

Good handoffs identify both what is known and what remains pending. That transparency allows a client, designer, manufacturer, contractor, or other responsible project party to make a timely decision without assuming that a preliminary or coordination drawing is a final approval.

A controlled issue path

Record source revisions, identify the issue purpose, consolidate comments, show what changed, and archive superseded files. This simple rhythm supports collaboration across clients, manufacturers, contractors, and design teams.

Where a drawing depends on information from another discipline or source, state that dependency plainly. This supports coordinated review without representing that MISTICO DESIGN has verified design, code, site, engineering, or specialist information outside the agreed scope.

SECTION 04

A practical completeness check

Use sheet titles, item tags, callouts, and schedules consistently. A reader should be able to find the view, material, hardware, and relevant detail for an item quickly.

MISTICO DESIGN can develop agreed drawing, CAD, documentation, and coordination deliverables for international project teams. The exact scope, standards, source information, and approval workflow are confirmed for each project so the output remains aligned with the actual requirement.

Before release, check the drawing set as a reader would: locate an item, follow its references, compare the relevant views, and make sure the status and next action are visible. This final pass is a straightforward way to reduce avoidable review loops.
